Atomic structure is the arrangement of protons, neutrons, and electrons that determines an atom's identity and chemical behavior, in the context of chemistry. An atom has a tiny nucleus containing protons and usually neutrons, surrounded by electrons in quantized energy levels called shells and orbitals. This model explains what atoms are made of, why elements differ, how ions and isotopes form, and why chemical bonds exist. Atomic structure exists as an idea because chemists need a testable way to connect matter too small to see directly with the substances, reactions, spectra, medicines, metals, and electronic devices that people can observe and use.
What an atom actually is

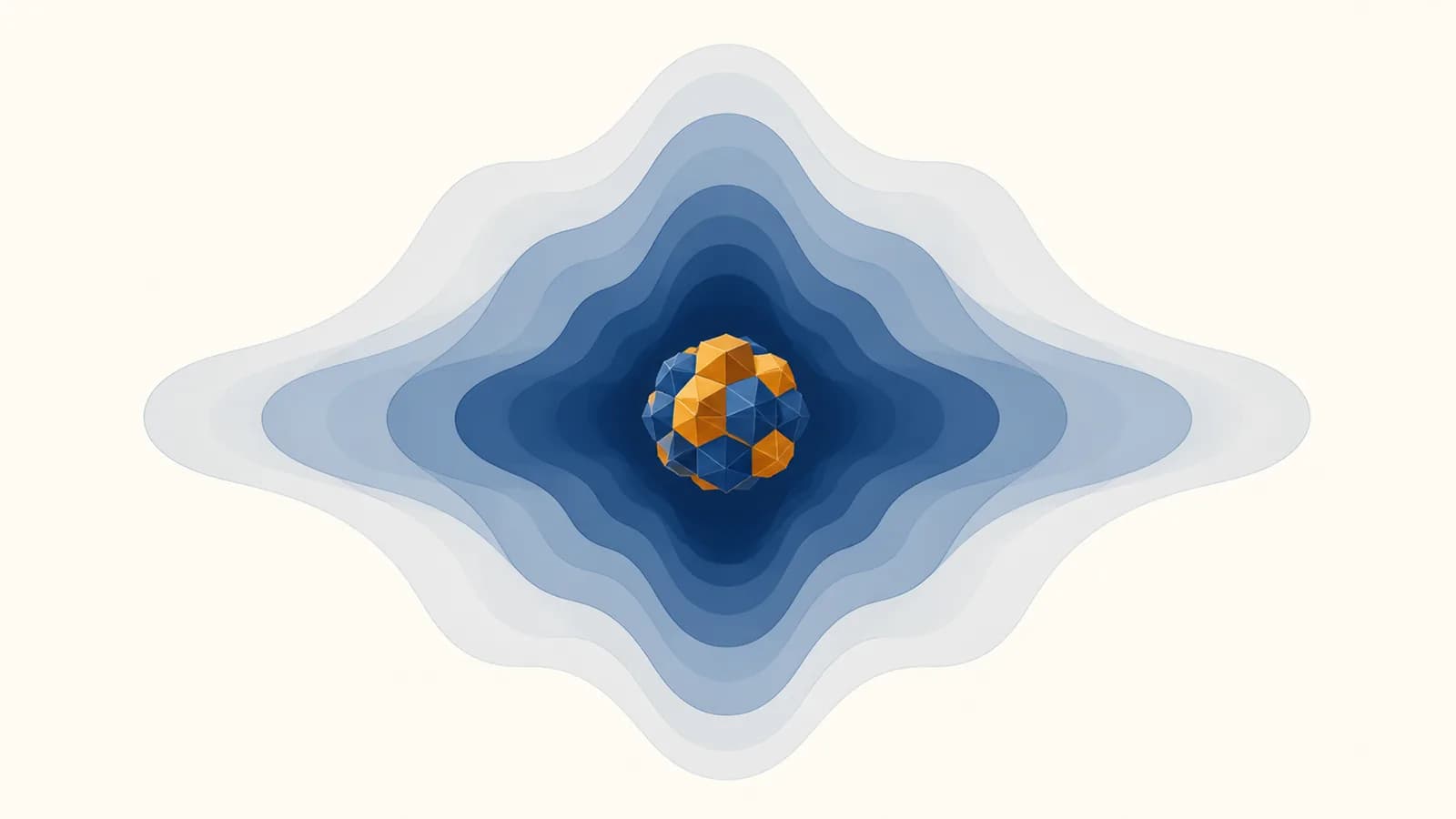

An atom is the smallest unit that retains the chemical identity of an element. It consists of a compact, positively charged nucleus and a much larger electron cloud, whose negative charge balances the nucleus when the atom is electrically neutral.
The nucleus contains nearly all the atom's mass, but it occupies only a minute fraction of the atom's volume. Protons and neutrons are packed inside it. Electrons occupy regions around it, described by probabilities rather than fixed little tracks. Most of the atom's volume is therefore a region in which electrons may be found, not a solid shell of material.
An element's identity comes from its number of protons. Every hydrogen atom has one proton, every carbon atom has six, and every oxygen atom has eight. Change the proton count and the element changes. Add a proton to carbon and the nucleus is no longer carbon; it is nitrogen.
Those charges explain neutrality. A carbon atom with six protons and six electrons has a total charge of zero because . The neutrons add mass and affect nuclear stability, but they contribute no electric charge. This division of roles is the first useful map of the atom: protons set the element, neutrons set the isotope, and electrons control most chemical behavior.
Identity is nuclear. A chemical reaction can move or share electrons, but it does not normally change the number of protons in a nucleus. That is why chemical reactions rearrange elements instead of turning one element into another.
What protons, neutrons, and electrons actually are
Protons are positively charged nuclear particles, neutrons are uncharged nuclear particles, and electrons are negatively charged elementary particles. Their charges, masses, and positions give atoms their identity, isotopic form, total charge, and capacity to form chemical bonds.
For school chemistry, protons and neutrons can be treated as particles of about one atomic mass unit each. The electron is far lighter, about 1/1836 of a proton's mass. That is why electron gain or loss changes an atom's charge without noticeably changing the mass number used in ordinary chemical calculations.
| Particle | Location | Relative charge | Approximate relative mass | Main chemical role |
|---|---|---|---|---|
| Proton | Nucleus | +1 | 1 | Sets the element's atomic number |
| Neutron | Nucleus | 0 | 1 | Sets the isotope and affects nuclear stability |
| Electron | Orbitals around the nucleus | −1 | About 1/1836 | Controls charge, bonding, and spectra |
At a deeper level, protons and neutrons are not elementary. Each is made of quarks bound by the strong interaction. Electrons, as far as current experiments show, are elementary. Chemistry rarely needs the quark description because normal reactions change electron arrangements while leaving nuclear particles intact.
The electron cloud also has structure. An electron bound to a nucleus has allowed quantum states with definite energy ranges and spatial patterns. An orbital is one such quantum state. It is not a container made of material, and it is not a route the electron follows.
How electron arrangement works
Electrons occupy allowed energy levels and orbitals, filling lower energy states before higher ones under ordinary conditions. Each orbital holds at most two electrons with opposite spins, and the outermost occupied electrons usually dominate an element's chemical reactions.
The simplest overview uses shells, labelled by the principal quantum number . Within shells are subshells called s, p, d, and f. An s subshell contains one orbital, a p subshell contains three, a d subshell contains five, and an f subshell contains seven. Since each orbital can hold two electrons, their maximum capacities are 2, 6, 10, and 14 electrons.
Consider oxygen, with atomic number 8. A neutral oxygen atom has eight electrons. Its ground state electron configuration is . The first shell holds two electrons. The second holds six, with four in the 2p subshell. Those six second-shell electrons are oxygen's valence electrons in the simple main-group model.
For the second shell, , so it can contain at most eight electrons.
The rule gives shell capacity, not the exact order in which every orbital fills. In multi-electron atoms, subshell energies overlap. For example, the 4s orbital is generally occupied before 3d in neutral atoms, although ion formation can change their relative energies. Electron configuration diagrams are therefore more accurate than imagining shells as simple circular shelves.
Two other rules complete the basic filling model. The Pauli exclusion principle limits an orbital to two electrons with opposite spin. Hund's rule says electrons occupy equal-energy orbitals singly before pairing when that lowers the energy. For oxygen's three 2p orbitals, four electrons distribute as one pair and two single electrons in the isolated atom.
Atomic number versus mass number
Atomic number counts protons and identifies the element, while mass number counts protons plus neutrons in one particular nucleus. Atomic number belongs to every atom of an element; mass number distinguishes one isotope of that element from another.
Counts protons only. For carbon, in every isotope and every ion.
Counts protons plus neutrons. Carbon-12 has ; carbon-14 has .
The relationship is simple:
For sodium-23, , so the nucleus has 11 protons and 12 neutrons.
Nuclear notation places the mass number at upper left and atomic number at lower left: . The element symbol already implies the atomic number, so sodium-23 is often written or simply Na-23.
The decimal number shown for an element on most classroom tables is different again. It is a relative atomic mass, a weighted mean based on the natural isotopic composition of a sample and masses measured relative to carbon-12. Chlorine's listed value is near 35.45, but that does not mean a chlorine nucleus contains a fraction of a neutron. Individual mass numbers are whole numbers. The decimal is an average across isotopes. The patterns and reference values are organized on the periodic table of elements.
Isotopes versus ions
Isotopes are atoms of the same element with different neutron counts, while ions are atoms or groups with unequal numbers of protons and electrons. Isotopes differ in mass and nuclear behavior; ions differ in charge and chemical interactions.
Carbon-12 and carbon-14 are isotopes because both have six protons, while their neutron counts are six and eight. A sodium atom and a sodium ion are not different isotopes merely because one has lost an electron. Both can have the same nucleus, but neutral sodium has 11 electrons and has 10.
It gives the proton count. Sodium has atomic number 11, so every sodium nucleus contains 11 protons.
For sodium-23, calculate neutrons.
A +1 charge means one fewer electron than protons, so has 10 electrons.
Negative ions have extra electrons. A chloride ion, , has one more electron than a neutral chlorine atom. For a single atom, the charge relation is when charge is measured in units of the elementary charge, with as protons and as electrons.
Isotopes usually undergo similar chemical reactions because they have the same proton count and, when neutral, the same electron configuration. Their rates can differ when bond vibration and particle mass matter, an effect called an isotope effect. Nuclear stability can differ much more sharply. Carbon-12 is stable, while carbon-14 is radioactive and undergoes beta decay.
Do not use an ion's electron count to name its element. Element identity always follows the number of protons. Ten electrons could belong to neon, , , or another ten-electron species.
How atomic structure determines chemical behavior
Chemical behavior arises mainly from valence electrons and the energy required to remove, add, or share them. Atoms form bonds when a new electron arrangement lowers the total energy of the interacting nuclei and electrons under the surrounding conditions.
Nuclear charge attracts every electron, while other electrons repel and shield one another. An outer electron therefore feels an effective nuclear charge rather than the full proton charge. Across a period, proton count generally rises while electrons enter the same main shell, so attraction tends to strengthen and atomic radius tends to shrink. Down a group, additional occupied shells place valence electrons farther from the nucleus and increase shielding, so atoms generally become larger.
These trends explain patterns rather than rigid commands. Alkali metals have one valence electron and often lose it to form +1 ions. Halogens are one electron short of a filled valence shell in the simple model and often gain one to form −1 ions. Noble gases already have filled outer shells, apart from helium's filled first shell, and are comparatively unreactive.
Table salt forms because sodium can transfer an electron to chlorine. The resulting and ions attract in a repeating crystal lattice. The solid is not made of separate sodium chloride molecules lined up like beads; it is an extended ionic structure.
Covalent bonding uses a different electron arrangement. Two hydrogen nuclei can share two electrons in a bonding molecular orbital. Each electron is attracted to both nuclei, and at the bond length the lowered electron energy outweighs nucleus to nucleus and electron to electron repulsions. If the atoms approach too closely, repulsion rises steeply. A bond length is therefore an energy minimum, not a pair of balls touching.
Polarity follows from unequal sharing. Oxygen attracts bonding electrons more strongly than hydrogen does, producing partial negative charge near oxygen and partial positive charge near hydrogen in a water molecule. That molecular structure helps explain water's interactions with ions and polar solutes, which is developed further in how substances dissolve and form solutions.
How atomic structure shows up in light, medicine, and materials
Atomic structure appears in measured spectra, medical imaging, radiation treatment, semiconductor devices, batteries, and material color. Each application uses a specific transition, charge movement, or nuclear change rather than treating atoms as abstract diagrams.
Light reveals quantized electron energies
An atomic spectrum is a set of specific wavelengths emitted or absorbed when electrons move between allowed energy states. An electron can absorb a photon whose energy matches the gap between two states. When it returns to a lower state, the atom can emit a photon carrying that energy.
A larger energy gap produces a higher frequency and a shorter wavelength .
This is why excited sodium atoms emit a strong yellow light and why discharge lamps have characteristic colors. Laboratories identify elements in samples by comparing spectral lines. Astronomers use the same physical link to identify atoms in stars from the wavelengths that reach a telescope.
Nuclei provide medical signals and radiation
Magnetic resonance imaging uses the magnetic behavior of certain nuclei, especially hydrogen nuclei abundant in water and fat. A strong magnetic field and radiofrequency pulses alter nuclear spin populations and phases. Detectors record the returning signal, while magnetic field gradients encode location. The scanner is reading controlled nuclear magnetic responses, not taking an ordinary photograph.
Radioisotopes supply another use. An unstable nucleus can emit radiation that detectors trace or clinicians direct at tissue. The chemical form determines where a labelled substance travels in the body, while the isotope determines what nuclear radiation is emitted and how quickly it decays. Both the electron structure and nuclear structure matter in the same procedure.
Electron bands control modern materials
In a solid, the orbitals of huge numbers of neighboring atoms combine into closely spaced energy bands. Conductors have available states that let electrons respond readily to an electric field. Insulators have a large energy gap between occupied and available states. Semiconductors sit between those cases, and engineers adjust their behavior by adding small, controlled amounts of other elements.
Silicon electronics work because doping changes the supply of mobile charge carriers. Adding an element with one more valence electron can provide mobile electrons. Adding one with one fewer can create mobile holes, which behave as positive charge carriers. Joining differently doped regions produces junctions that direct current in diodes, transistors, solar cells, and sensors.
How scientists built the atomic model from evidence
The modern atomic model is a sequence of evidence-based revisions, not a picture chosen for convenience. Scattering, electric fields, spectra, and quantum experiments forced scientists to replace indivisible spheres, embedded charges, and fixed electron paths with nuclei and orbitals.
John Dalton argues that elements consist of characteristic atoms and that compounds form through combinations in whole-number ratios. Later discoveries show atoms are divisible, but his model explains established laws of chemical composition.
J. J. Thomson uses cathode rays and their deflection by electric and magnetic fields to show that atoms contain much lighter, negatively charged particles.
Results from alpha-particle scattering, carried out by Geiger and Marsden and interpreted by Ernest Rutherford, show that positive charge and most mass occupy a tiny central region.
Niels Bohr proposes allowed electron energies that account for key lines in hydrogen's spectrum, although fixed circular orbits do not describe multi-electron atoms accurately.
Erwin Schrödinger publishes a wave equation whose solutions describe allowed quantum states. Probability distributions replace definite classical paths in the working atomic model.
James Chadwick interprets penetrating radiation from beryllium as evidence for an uncharged nuclear particle with a mass close to the proton's.
The Rutherford scattering result is especially instructive. Most alpha particles passed through thin metal foil with small deflections, but a small fraction turned through large angles. A spread-out positive charge could not produce enough concentrated repulsion. A small, massive, positively charged nucleus could. The model changed because a measured pattern ruled out the earlier charge distribution.
The Bohr model still appears in early lessons because it introduces energy levels cleanly. It correctly captures important features of one-electron species, including hydrogen. Its circular paths are not literal electron trajectories in the modern model. Orbitals come from quantum mechanics and describe state-dependent probability distributions.
Electrons circle the nucleus along precise rings like planets around the Sun.
Electrons occupy quantum states with measurable energies and probability distributions, but they do not possess a known classical orbit.
Five mistakes people make with atomic structure
Most errors come from mixing different counting rules or taking a useful diagram literally. Keeping identity, mass, charge, energy, and scale separate prevents the five common mistakes below and makes later chemical calculations much easier.
1. Treating atomic mass and mass number as the same quantity
Mass number is the whole-number count of protons and neutrons in one nucleus. Relative atomic mass is an isotope-weighted mean on the carbon-12 scale. If a sample were 75% isotope X-10 and 25% isotope X-11, its simplified weighted mean would be . No individual nucleus needs a mass number of 10.25.
2. Finding neutrons by subtracting electrons
Neutrons equal mass number minus atomic number. Electron count is used to find charge, not neutron count. For , magnesium's atomic number 12 gives 12 protons, neutrons, and electrons.
3. Drawing electrons as tiny planets
Shell diagrams are bookkeeping tools. Their circles show energy levels, not measured paths. An orbital describes a quantum state and its spatial probability distribution. The distinction matters because orbital shapes and overlaps help explain bond direction, molecular geometry, spectra, and reactivity.
4. Saying atoms seek a full outer shell
The octet rule is a useful pattern for many main-group compounds, not a motive or universal law. Atoms do not seek anything. Systems tend toward lower-energy arrangements subject to quantum rules and conditions. Hydrogen often has two valence electrons around it, boron can be electron-deficient, and many transition-metal compounds do not fit a simple octet count.
5. Assuming removing an electron releases energy
Removing a bound electron from an isolated gaseous atom requires energy, called ionization energy. Ion formation can still occur within an overall energy-releasing process because other steps release more energy. In sodium chloride formation, attractions created as ions form a lattice help compensate for the energy inputs. Tracking all energy changes belongs to chemical energy and heat calculations.
How large is an atom compared with its nucleus?
An atom is roughly tens to hundreds of picometres across, while a nucleus is roughly femtometres across. Their diameter ratio is commonly around one hundred thousand, although exact sizes vary and an electron cloud has no hard outer surface.
A picometre is metre and a femtometre is metre. Using a representative atomic radius of 100 pm and nuclear radius of 1 fm gives a radius ratio of . If the nucleus were represented by a bead 1 millimetre in radius, the corresponding electron cloud would extend to roughly 100 metres in this simplified scaling.
This comparison does not mean the atom is a hollow container with a wall. The electron probability density varies continuously, and atomic radius is defined operationally from interactions or distances between bonded atoms. Different definitions give somewhat different radii.
Why do electrons not fall into the nucleus?
Electrons do not collapse into the nucleus because a bound electron is a quantum system with allowed states, and its lowest-energy state already has a finite spatial spread. Confining it more tightly would increase its momentum uncertainty and kinetic energy.
A classical orbiting charge would radiate energy and spiral inward, which is one reason the planetary model fails. Quantum mechanics replaces that path with a wavefunction. The ground state of hydrogen is stable because no lower allowed electronic state exists for the atom to fall into while conserving the required quantities.
There can still be nuclear processes involving inner electrons. In electron capture, a nucleus absorbs an inner electron, converting a proton into a neutron and emitting an electron neutrino. That process occurs only when the nuclear transformation is energetically allowed. It does not mean ordinary atomic electrons are steadily spiralling inward.
Can atoms be split or changed into other elements?
Atoms can be ionized by moving electrons, split into smaller particles in high-energy processes, or changed into other elements by altering their nuclei. Only the last process is nuclear transmutation, because element identity depends on proton count.
Chemical reactions preserve nuclei and rearrange electrons. Nuclear fission splits a heavy nucleus into lighter nuclei and other products. Nuclear fusion combines light nuclei into heavier ones when conditions overcome or tunnel through their electric repulsion. Radioactive decay can also change one element into another, such as beta decay changing a neutron to a proton or a proton to a neutron through weak-interaction processes.
The energy scale is much larger for nuclear changes than for ordinary chemical bonds because nuclear forces and changes in rest mass are involved. This is why burning hydrogen in oxygen and fusing hydrogen nuclei are entirely different processes even though both involve hydrogen. One rearranges electrons; the other rebuilds nuclei.
Atomic structure connects the whole of chemistry
Atomic structure connects element identity, periodic patterns, bonding, reaction energy, material properties, and measurement. Once proton count, electron arrangement, and nuclear variation are kept distinct, much of the study of chemistry becomes one connected explanation rather than a list of rules.
When you meet an unfamiliar species, write down three counts: protons, neutrons, and electrons. Then identify the valence configuration and ask what could lower the energy through electron transfer, sharing, excitation, or nuclear change. This short routine separates isotope questions from ion questions and links symbolic notation to a physical mechanism.
The takeaway: The nucleus tells you which element and isotope you have. The electrons tell you its charge and most of its chemistry. Notice which part changes in any process, and you can usually identify the kind of process before calculating anything.
